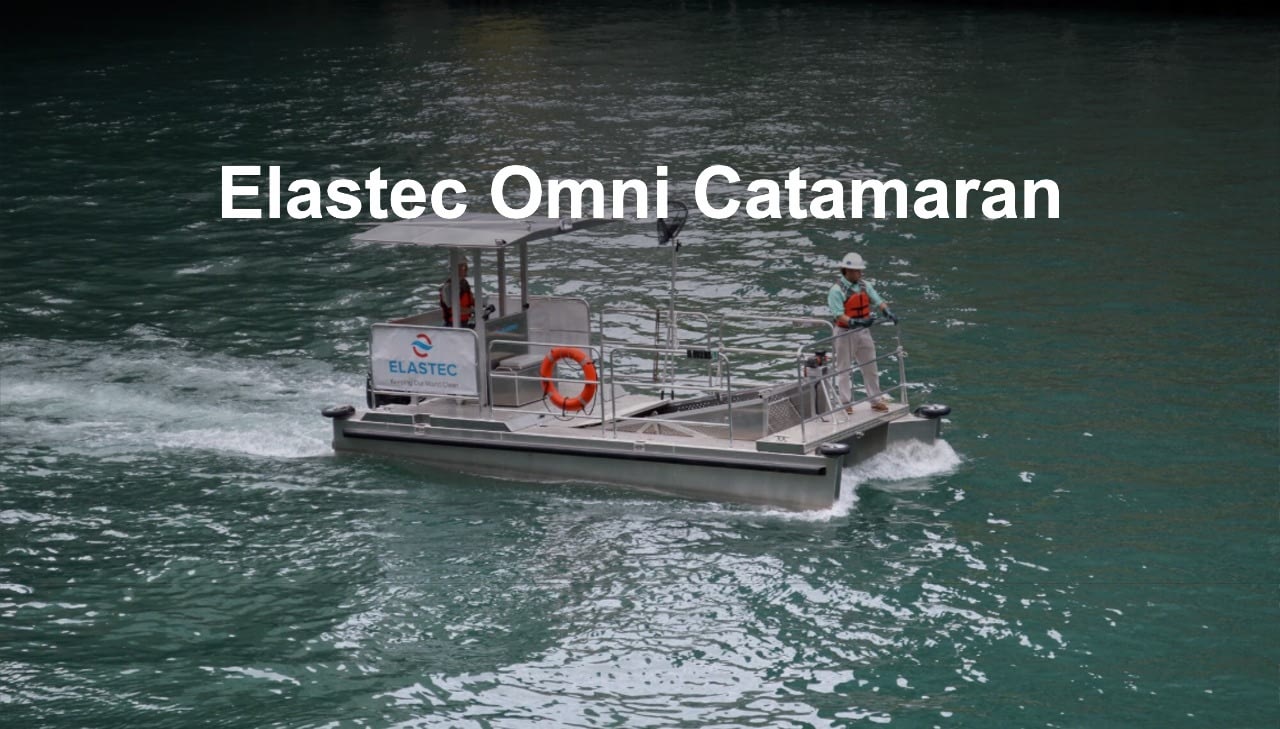

The ELASTEC Omni Catamaran is a versatile aluminum work boat that offers a variety of waterway maintenance and marina service applications. Its interchangeable “pods” are easily exchanged to facilitate various marine tasks such as: collecting floating debris, transporting cargo, pumping out boat sewage, cutting invasive aquatic weeds, supporting diving operations, lifting buoys and responding to oil spills. The Omni Catamaran’s unique drop-in pod system allows for a range of duties to be performed efficiently while offering a large, flat working platform and excellent stability.
Loading and unloading of cargo is easy using the unique lift-in pod arrangement. The handrails are removable to allow easy deck access. A range of loading ramps and ladder designs are available.
Elastec’s GSA contract number is 47QSWA19D0007.

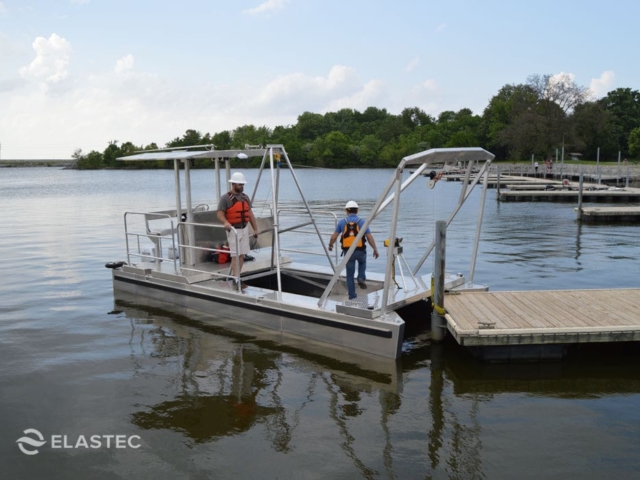

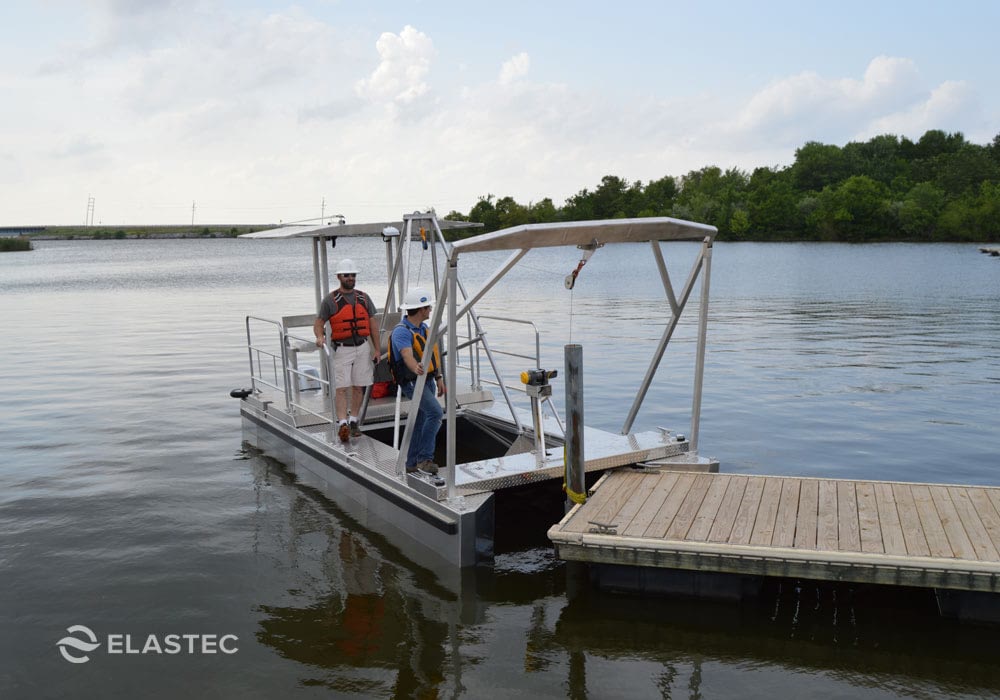

PROJECT: A-FRAME POD OMNI CATAMARAN
Description

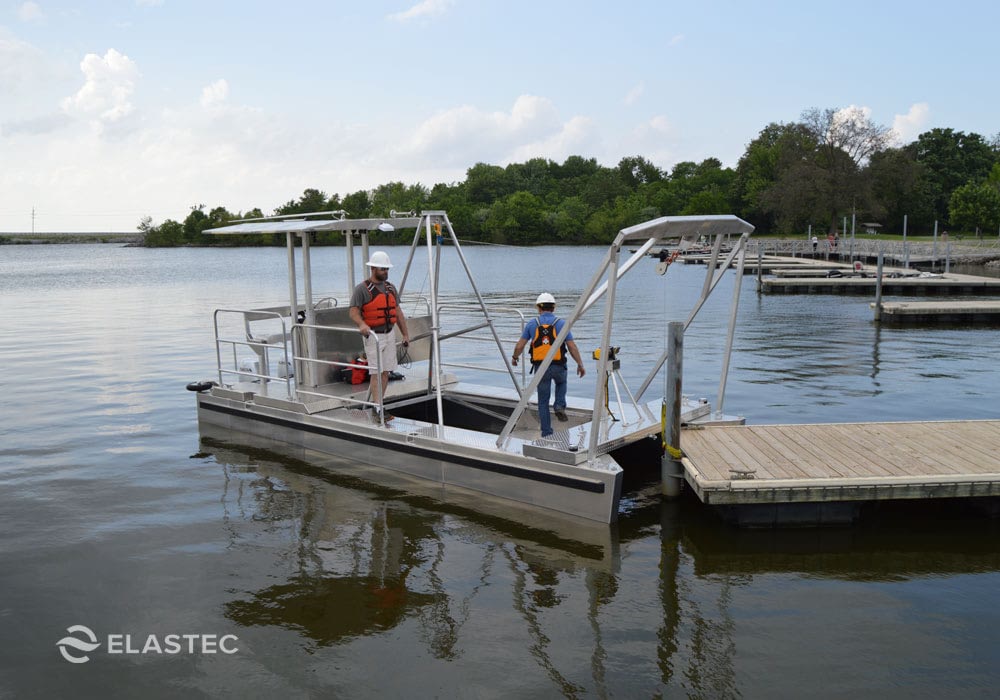

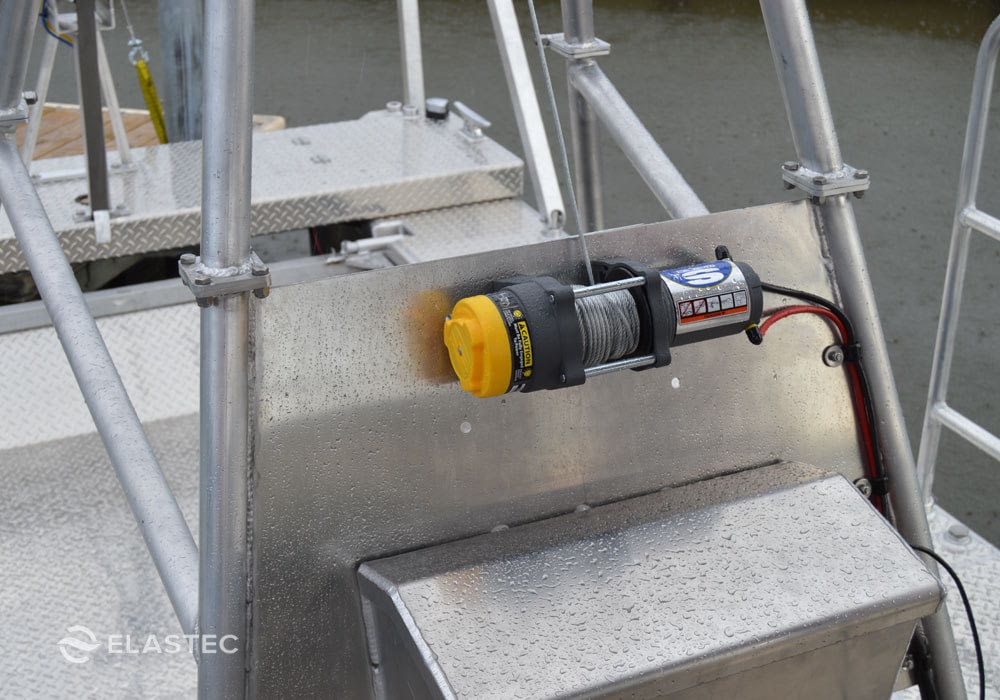

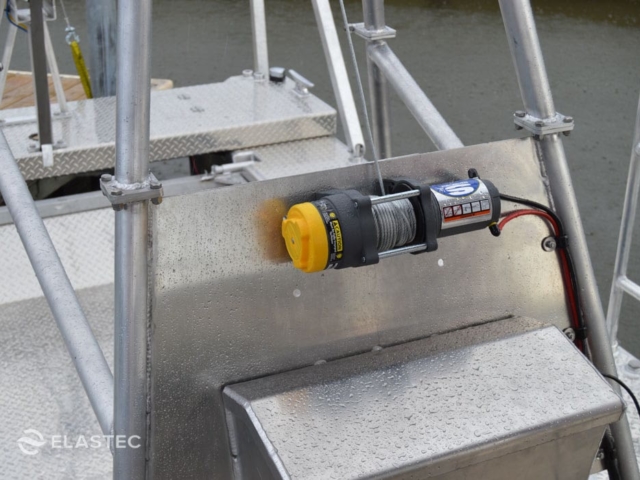

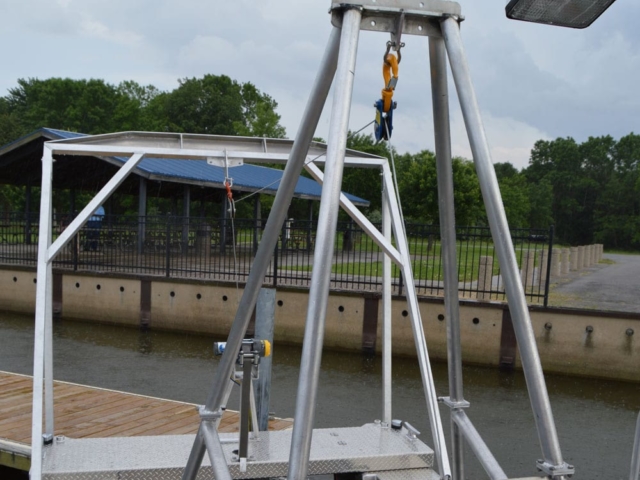

This Omni Catamaran features an A-frame crane that allows it to pick from the center or the bow. It is used to assist in moving mooring anchors, buoy anchors, or for dock maintenance.

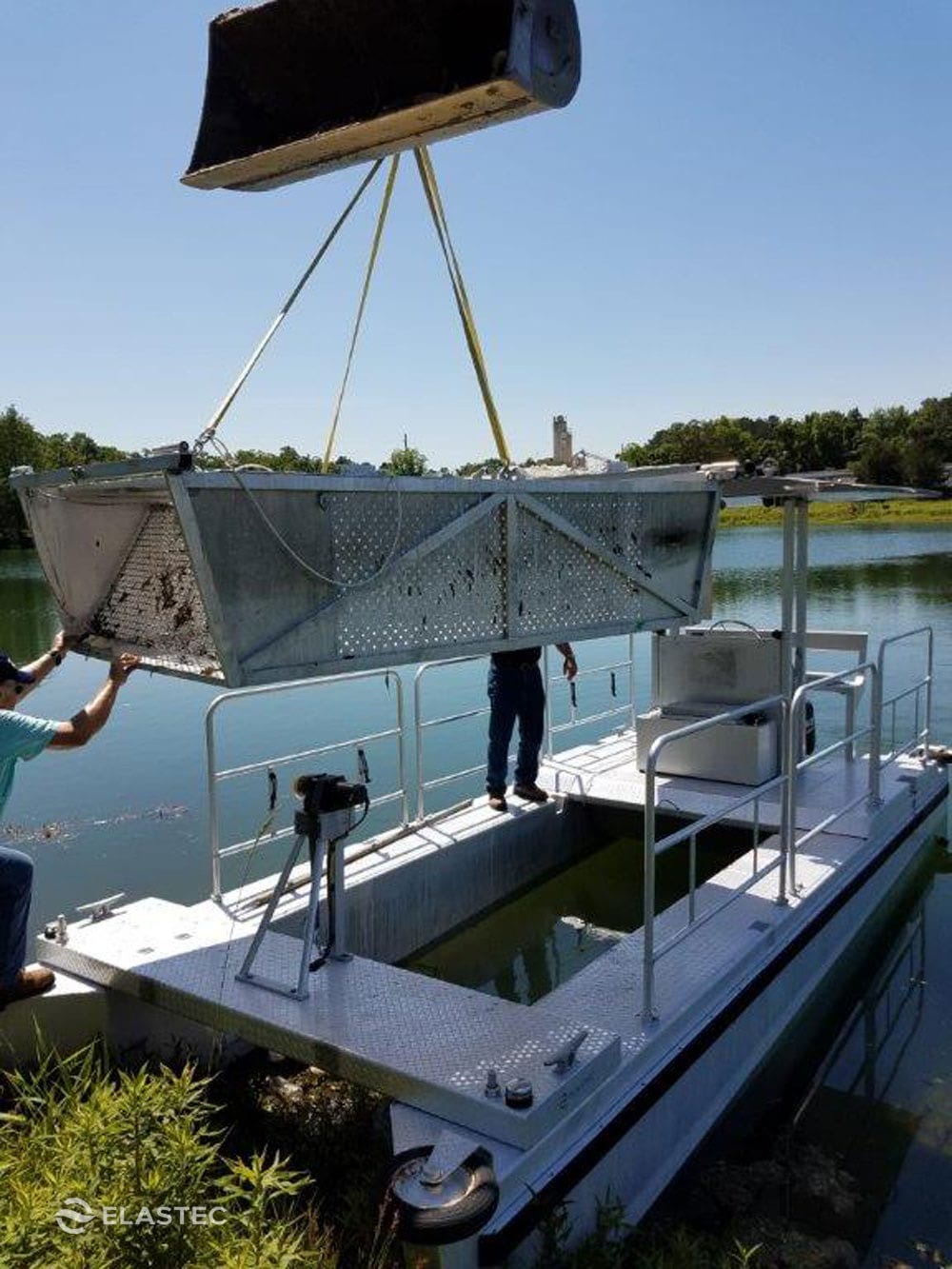

PROJECT: LITTER BASKET POD OMNI CATAMARAN
Description

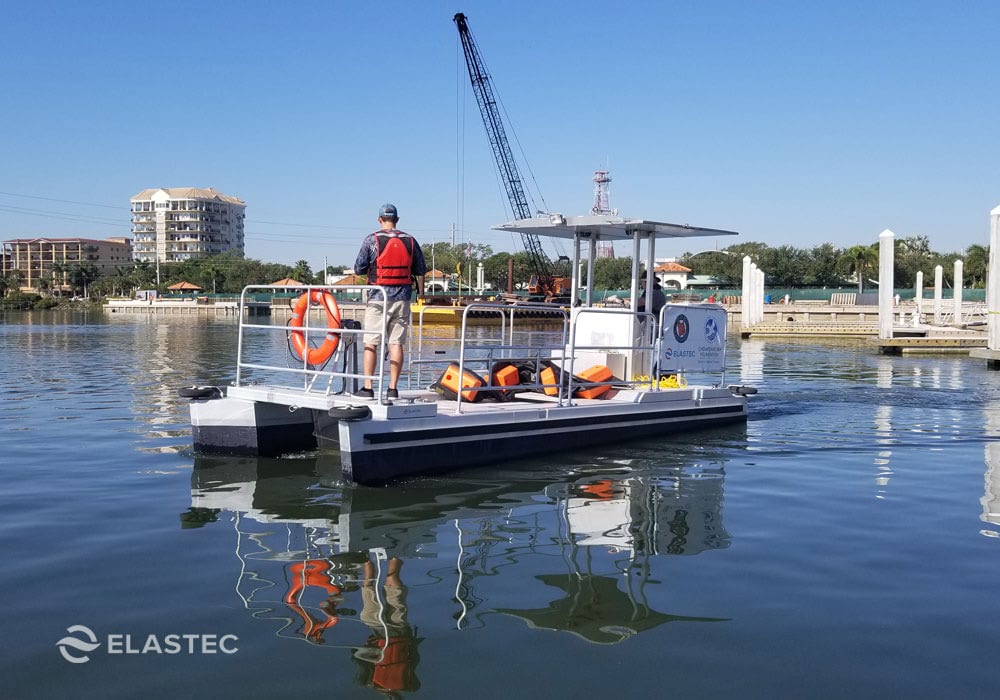

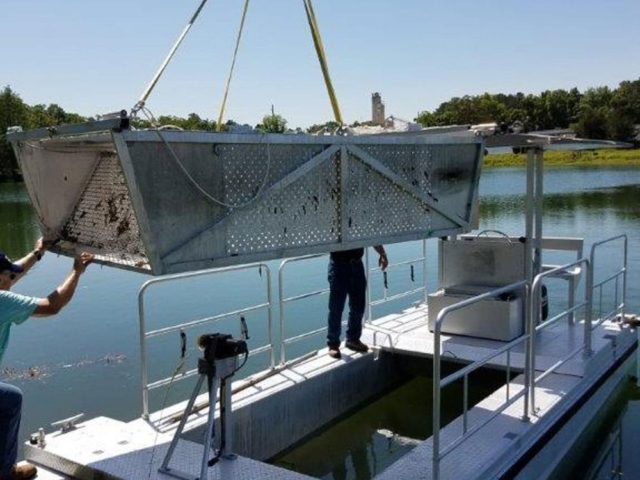

This Omni Catamaran features the litter basket pod. It was built to collect floating trash and debris. The litter basket is easily removed with the provided sling for offloading.

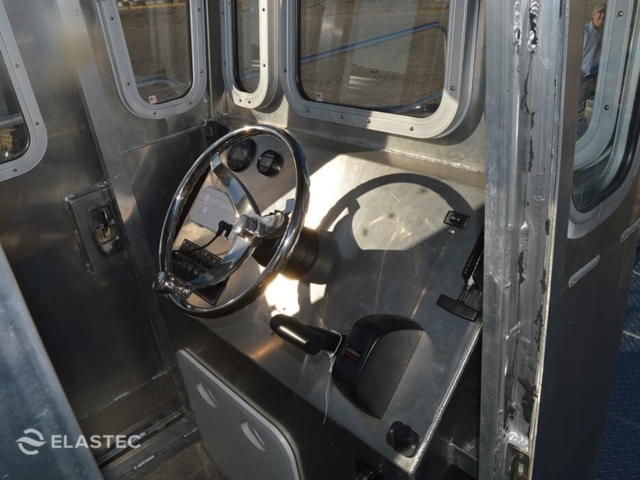

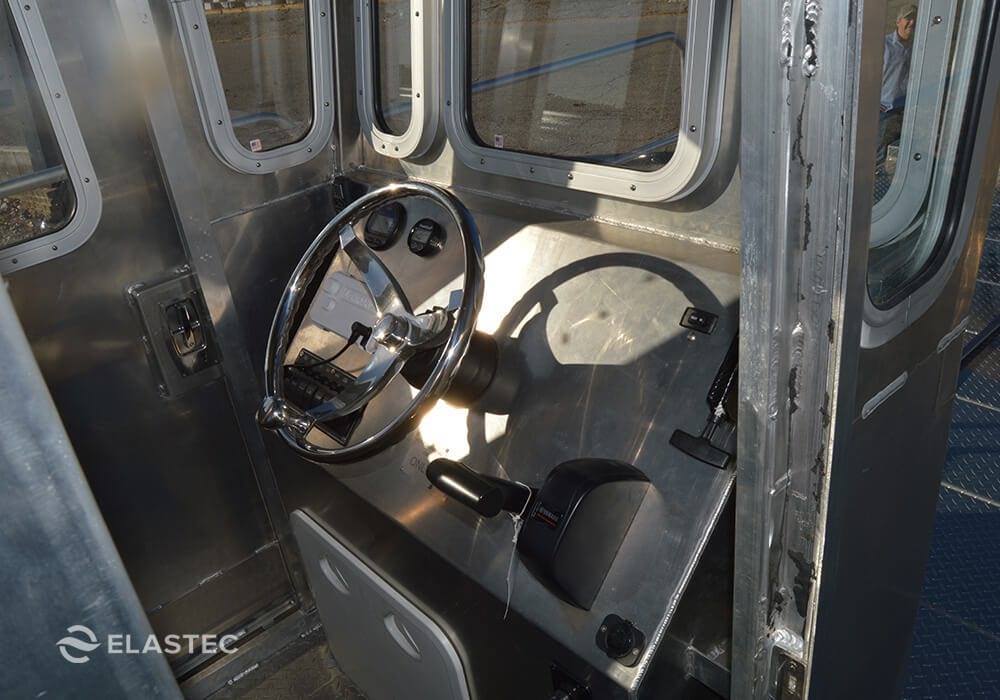

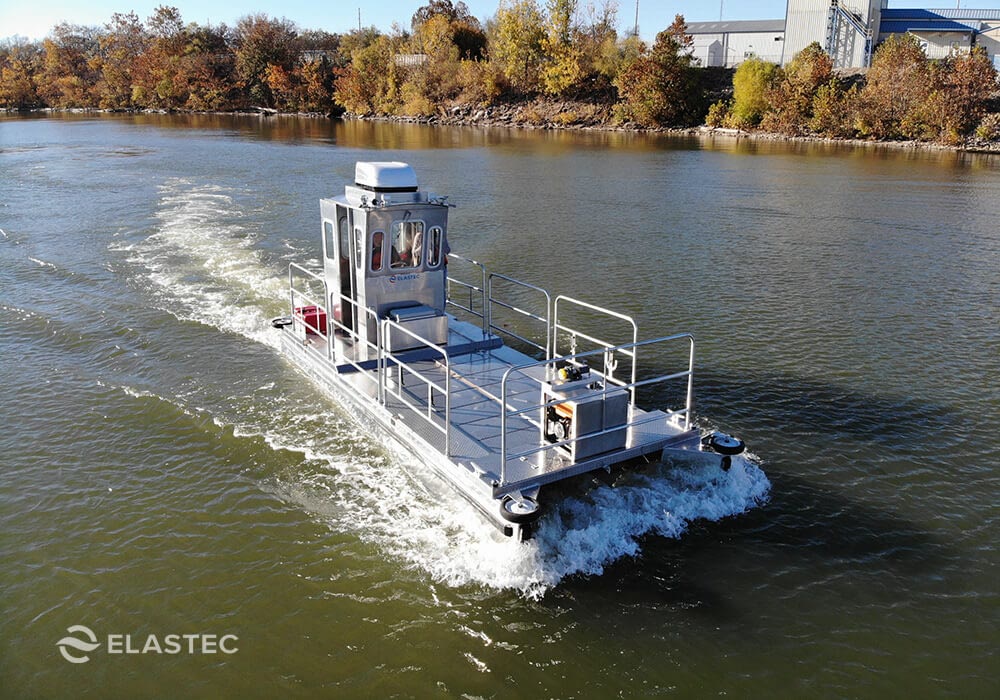

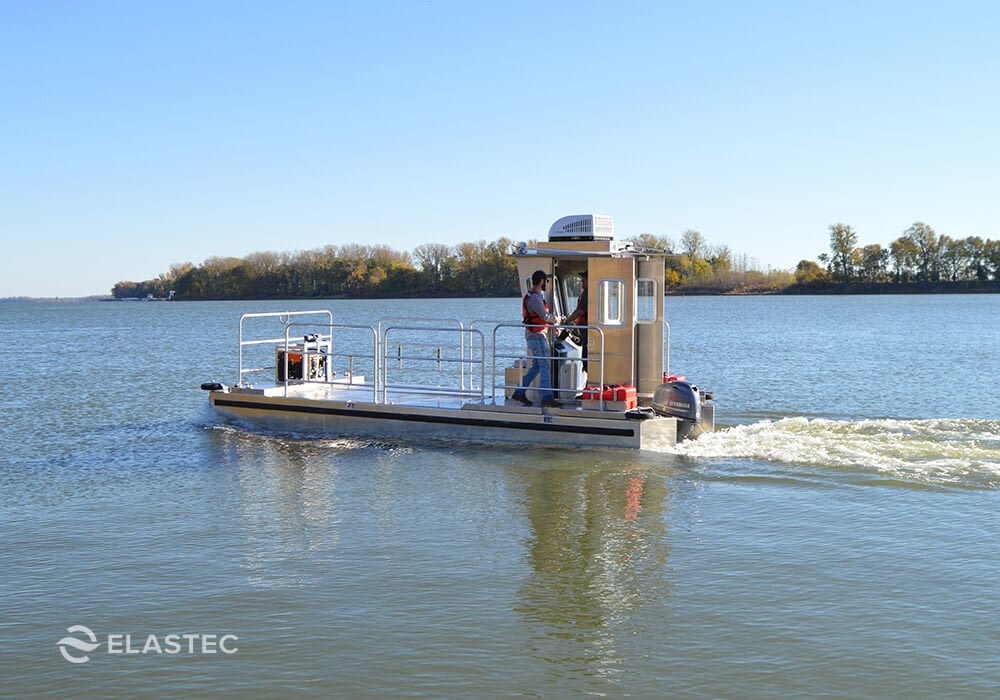

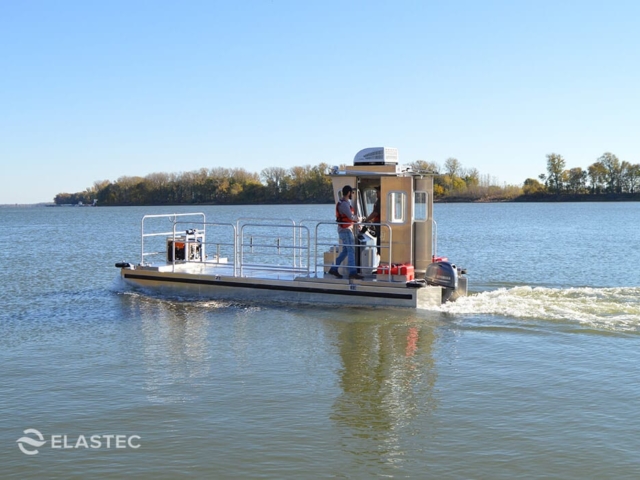

PROJECT: FULL CABIN OMNI CATAMARAN
Description

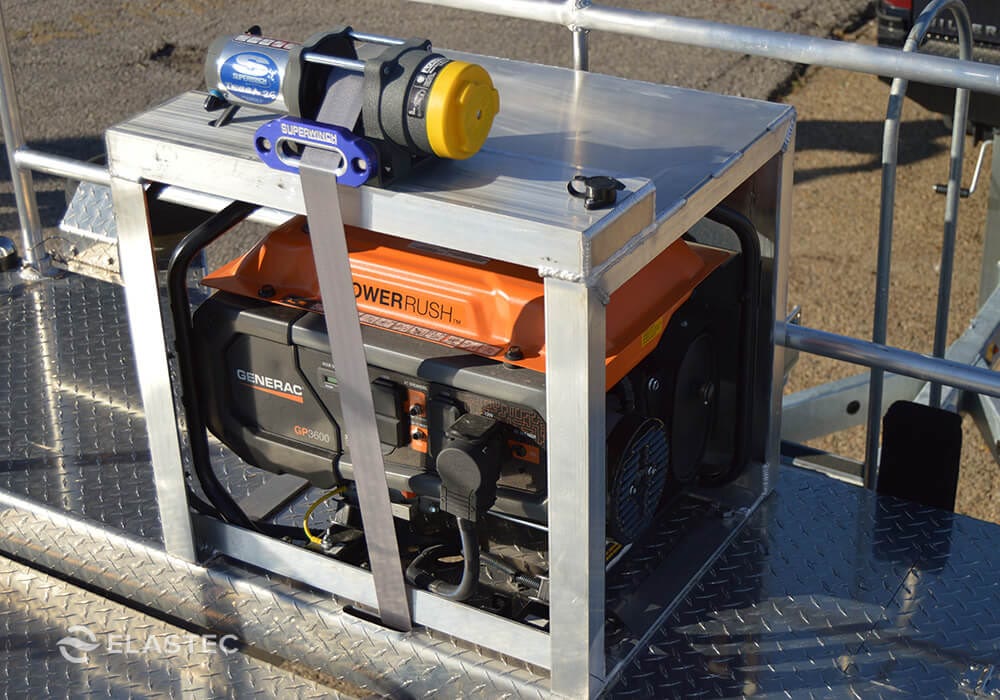

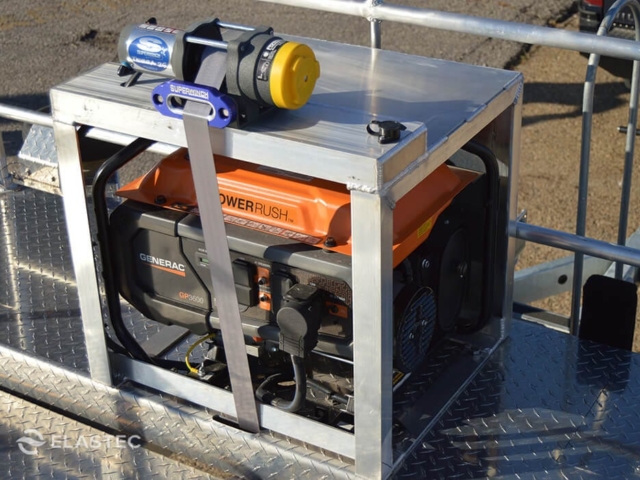

This Omni Catamaran features full cabin with air conditioning unit. It is also equipped with a generator located on the bow.
FEATURES AND BENEFITS
- Shallow draft, excellent maneuverability for operating in confined spaces
- Easily loaded and transported by road with optional trailer
- Marine grade aluminum construction
- Stable working platform with variety of deck configurations
Loading and unloading of cargo is easy using the unique lift-in pod arrangement. The handrails are removable to allow easy deck access. A range of loading ramps and ladder designs are available.
SPECIAL FEATURES
- Unique interchangeable pod system allows the vessel to perform many functions.
- Efficient system for collecting floating trash and debris eliminates complex hydraulics or moving parts.
- Wheeled fenders allow the craft to be driven along quay walls where trash is most likely to collect.
- Cutaway transoms allow the boat to pull away from quay walls with ease.
- Pod system allows items to be loaded directly on the quayside and lifted onto the boat.
UNIQUE DROP-IN POD SYSTEM
The Omni Catamaran’s unique drop-in pod system allows for a range of duties to be performed efficiently while offering a large, flat working platform and excellent stability.

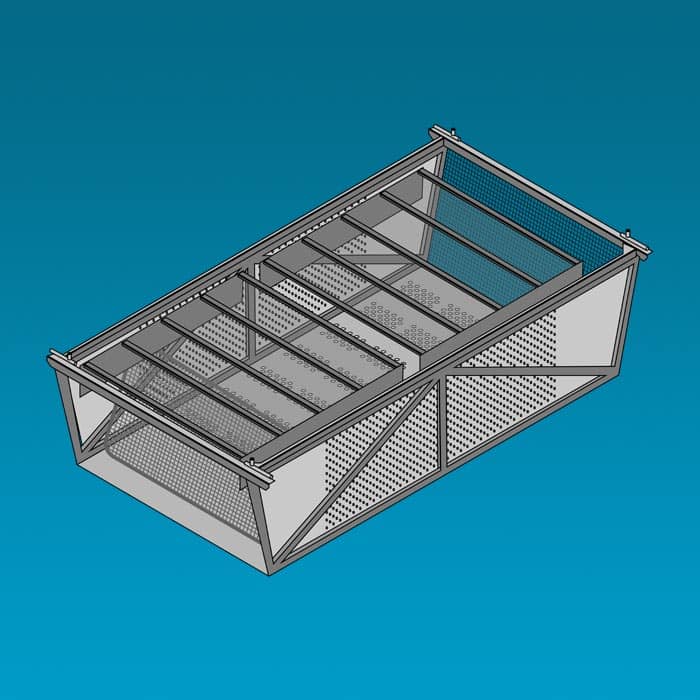

Litter Basket
The Litter Basket pod has a capacity of 99 cu ft / 2.8 cm that allows the Omni Catamaran to collect floating trash and debris in harbors, marinas and protected waterways. Strengthened corner points allow for secure crane hoisting.

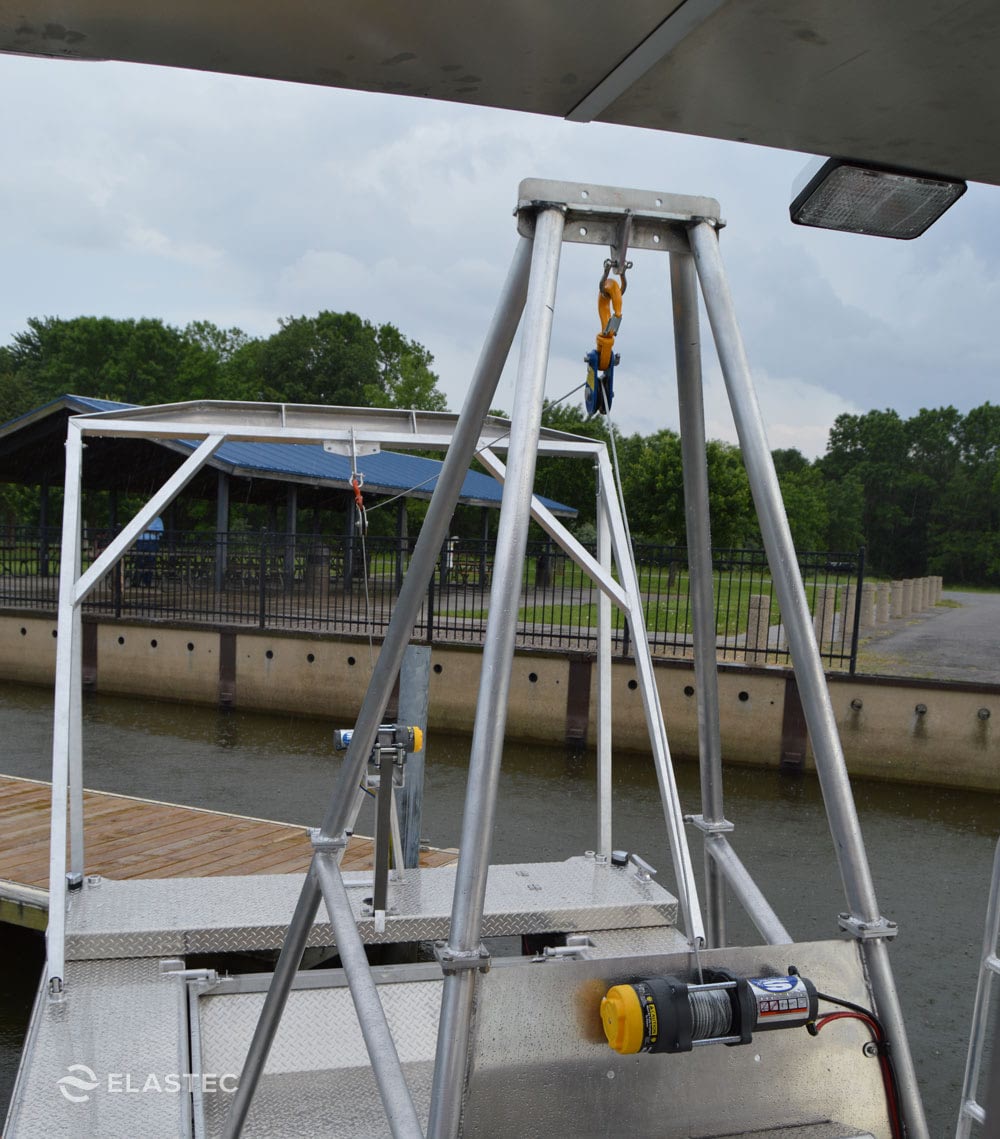

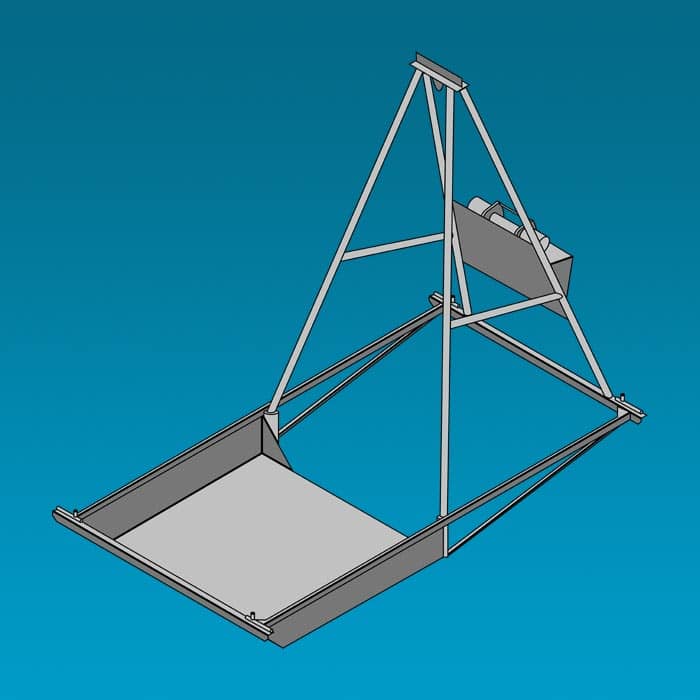

A-Frame Lifting Pod
The A-frame lifting system with a 1,500 lb. mid-ship pull for added stability is ideal for hoisting and inspecting navigational buoy moorings and a multitude of applications that cannot be accomplished with standard craft.

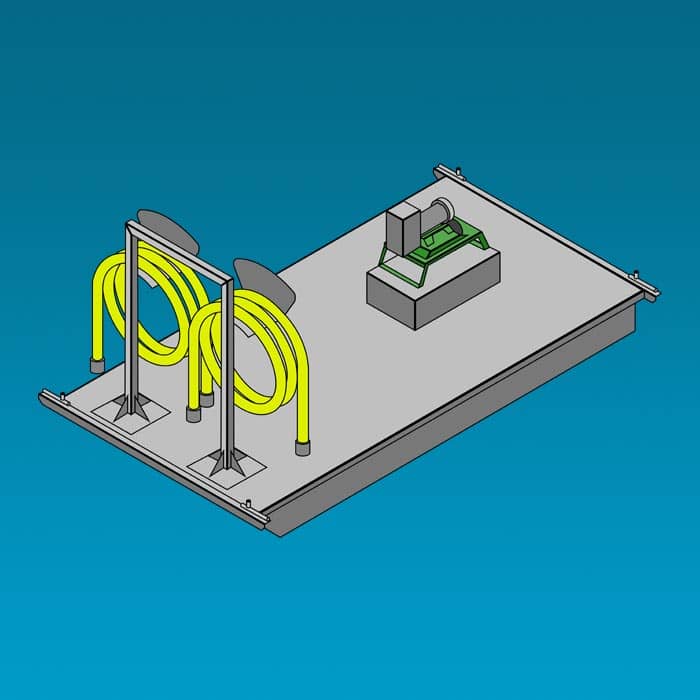

Pump Out Pod
The pump out pod is designed for servicing sewage holding tanks on boats allowing the Omni Catamaran to serve as a “valet” pump out boat. The pod’s holding tank is located below deck, adding to the stability of the Omni Catamaran. The pump system may also be used in emergency situations where pumping of a bilge or other location is needed. Pump out grants may be available for vessels equipped with these systems.

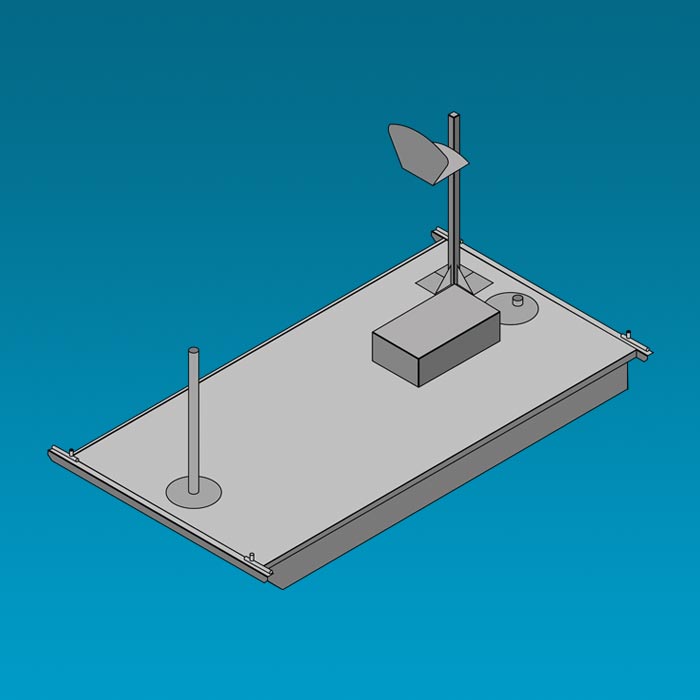

Wash-Down Pod
The wash-down pod features a gasoline power washer to spray river walks and docks.

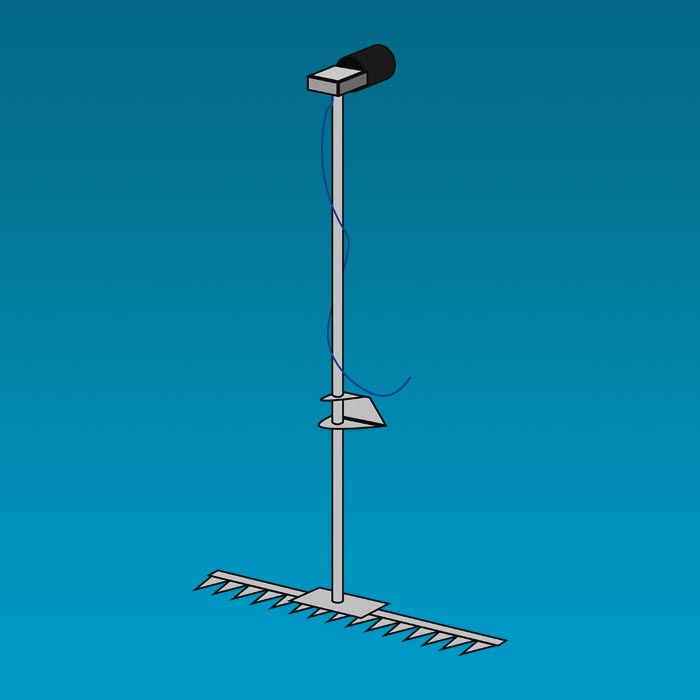

Jenson Lake Mower
The Jenson Lake Mower is designed to cut invasive aquatic plants. The 4 ft wide cycle cutter is used in conjunction with the collection basket to trim and collect marine vegetation.

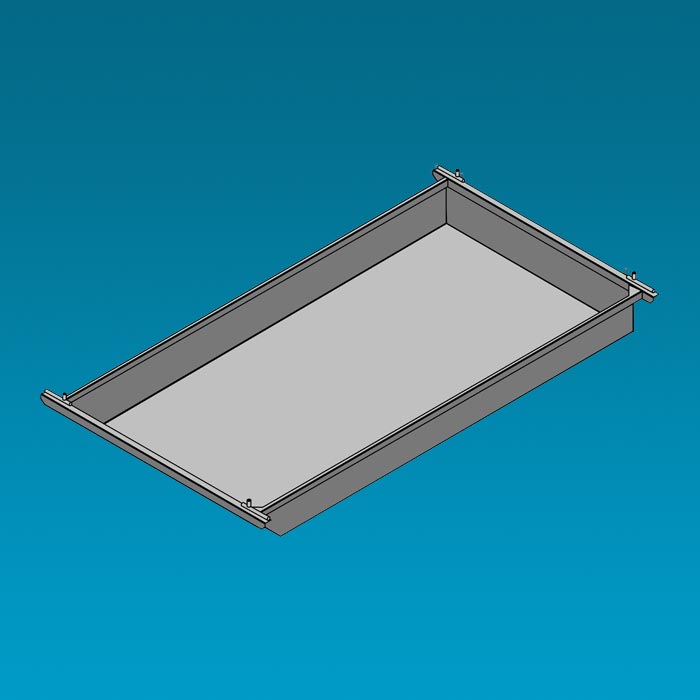

Cargo Pod
The cargo pod is a recessed compartment for transporting equipment. It features strengthened corner points for crane lifting and has a maximum load capacity of 2,204 lb / 1,000 kg.

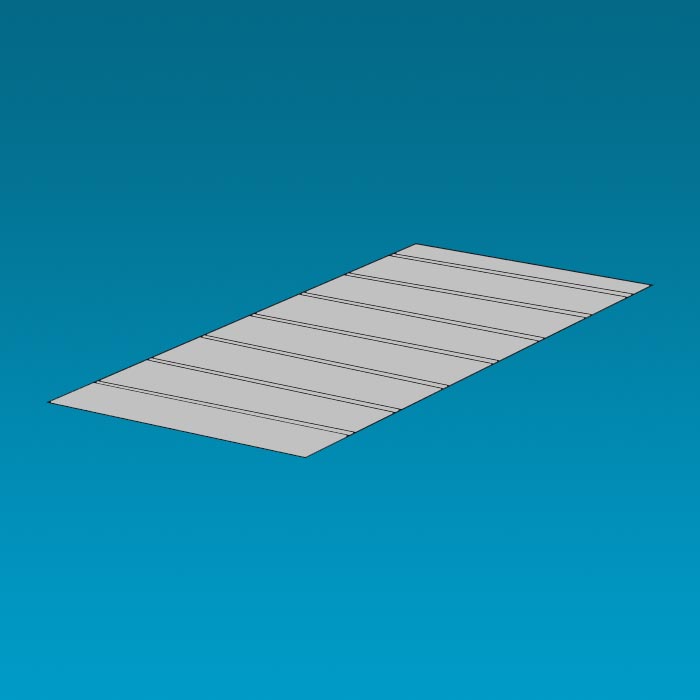

Deck Plates
Standard non-slip aluminum tread plates provide a solid-surface working platform allowing the Omni Catamaran to be used as a general waterway maintenance vessel.
*Other motor configurations are available. Maximum speed is determined by motor horsepower and other factors.
